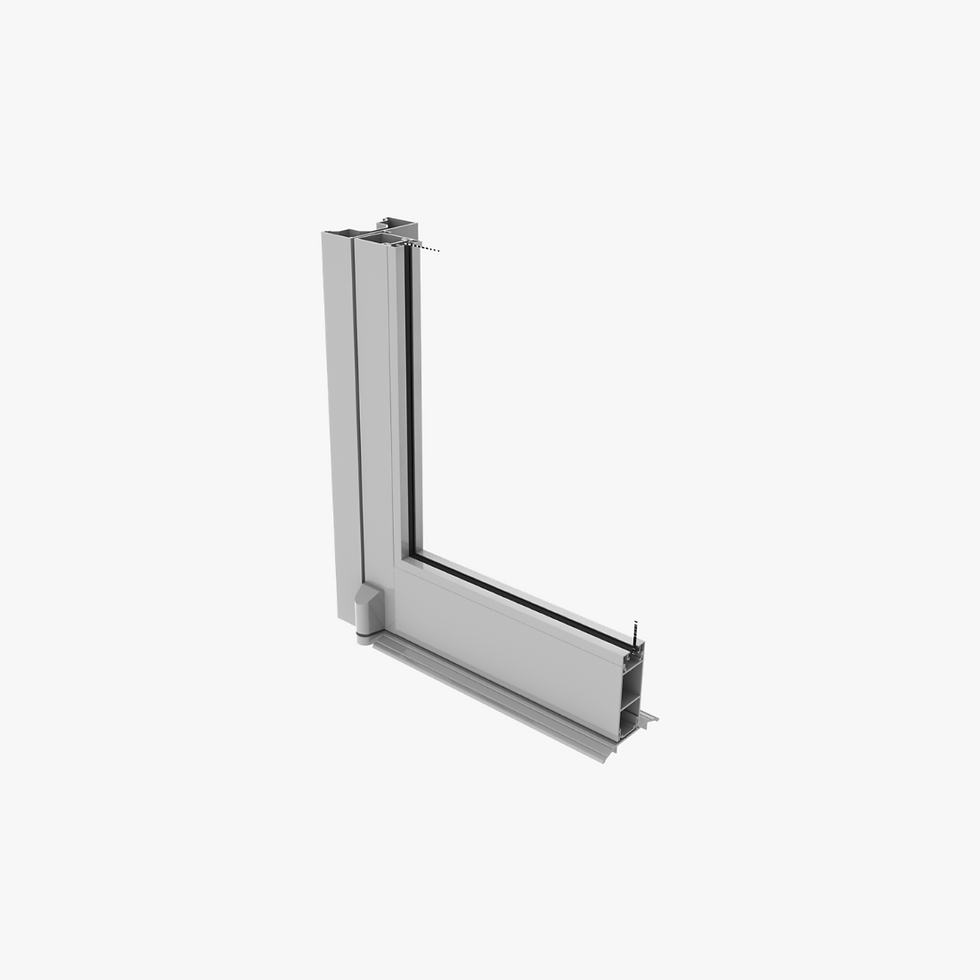

ES-35 Swing Door
The ES-21, ES-35 and ES-50 are 2 1/8”, 3 1/2” and 5” narrow, medium and wide stile swing doors, accordingly. They are compatible with the ES-4520 storefront. These doors are ideal for interior or exterior areas, providing an exclusive architectural design.
Product Description
Single or double acting operation
Narrow stile: 2 1/8” wide
Medium stile: 3 1/2” wide
Wide stile: 5”.Leaf depth: 1 3/4”
Frame depth: 4 1/2”
Sightline frame: 2”
Designed for 1/4” monolithic and 1” insulating glass
Maximum size: 42” x 96” (X); 84” x 96” (XX)
Design load: +50/-50 psf ES-21X; +30/-30 psf ES-21XX; +70/-70 psf ES-35X; +50/-50 psf ES-35XX; +50/-50 psf ES-50X; +30/-30 -psf ES-50XX SMI and LMI
U-value: ES-21: 0.61; ES-35: 0.69; ES-50: --0.74.
Specifications & Features
Pre-assembled and pre-glazed
Available with butt hinges
ADA threshold
Anodized, painted or wood grain finishes available
Corners are reinforced with welded aluminum brackets
Variety of accessories, including three point lock, concealed vertical rod exit devices, overhead concealed closer, push- pull handle, etc
